Viking Graben data

In the next part of the assignment, we will take a step back in processing the Viking Graben dataset and use the original unprocessed data.

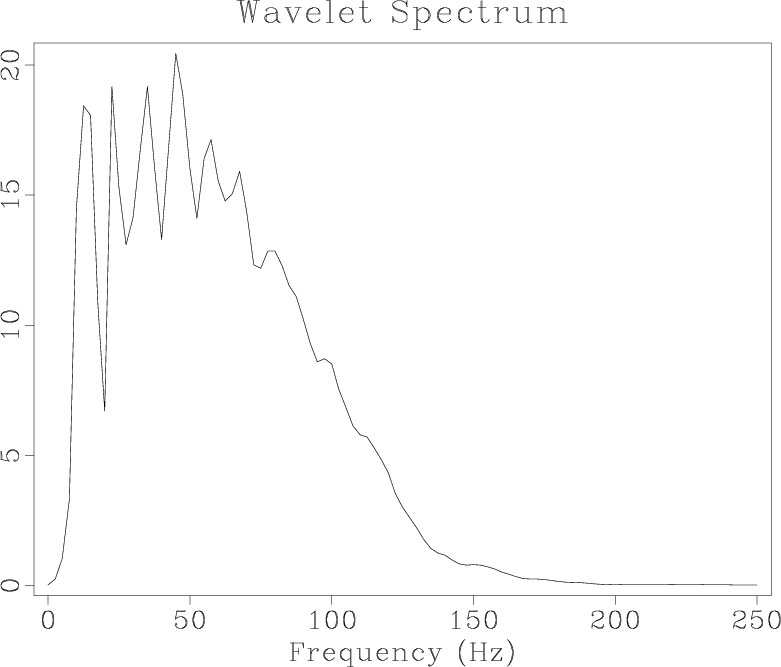

wavelet,spectrum Figure 9. Far-field wavelet (a) and its Fourier spectrum (b).


filter,wdecon Figure 10. Estimated prediction-error filter (a) and the result of wavelet deconvolution (b).


viking1000 Figure 11. First 1,000 traces from the Viking Graben dataset.


decon1000 Figure 12. Viking Graben traces after deconvolution.


varms,vscarms,vadiff Figure 13. Trace amplitudes from the Viking Graben dataset. (a) Initial. (b) Estimated surface-consistent. (c) Difference.

from rsf.proj import *

# Download Viking Graben data
#Fetch('seismic.segy','viking')
Fetch('seismic.segy','VikingGrabbenLine12',
      top='/home/p1/seismic_datasets/SeismicProcessingClass',
      server='local')

# Convert from SEGY to RSF
Flow('viking tviking viking.asc viking.bin','seismic.segy',
     '''
     segyread tfile=${TARGETS[1]}
     hfile=${TARGETS[2]} bfile=${TARGETS[3]}
     ''')

# Far-field wavelet
Fetch('FarField.dat','Mobil_Avo_Viking_Graben_Line_12',
      top='open.source.geoscience/open_data',
      server='http://s3.amazonaws.com')

# Convert from ASCII to RSF
Flow('wavelet','FarField.dat',
     '''
     echo in=$SOURCE data_format=ascii_float n1=500 o1=0 d1=0.0008
     label1=Time unit1=s n2=1 | dd form=native
     ''')
Result('wavelet','wiggle poly=y title=Wavelet pclip=100')

Result('spectrum','wavelet',
       '''
       spectra | window max1=250 |
       graph title="Wavelet Spectrum"
       ''')

# Subsample to data sampling
Flow('wavelet4','wavelet','window j1=5 | pad n1=1500')

prog = Program('convolve.c')
convolve = str(prog[0])

# Estimate PEF by iterative least-squares inversion
Flow('filter0',None,'spike n1=100 k1=1')
Flow('filter',['wavelet4',convolve,'filter0'],
     '''
     conjgrad ./${SOURCES[1]} nf=100 data=${SOURCES[0]}
     niter=100 mod=${SOURCES[2]}
     ''')

Result('filter','filter filter0',
       '''
       pad beg1=1 | window n1=100 |
       scale axis=-1 | add ${SOURCES[1]} |
       wiggle poly=y title="Prediction-Error Filter" pclip=100
       ''')

# Wavelet deconvolution
Flow('wdecon',['filter','wavelet4',convolve],
     '''
     ./${SOURCES[2]} data=${SOURCES[1]} adj=n |
     add ${SOURCES[1]} scale=-1,1 | window n1=100
     ''')
Result('wdecon','wiggle poly=y title=Deconvolution pclip=100')

# Apply to the first 1000 traces
Flow('viking1000','viking','window n2=1000')
Result('viking1000','pow pow1=2 | grey title="First 1,000 traces" ')

Flow('decon1000',['filter','viking1000',convolve],
     '''
     ./${SOURCES[2]} data=${SOURCES[1]} adj=n |
     add ${SOURCES[1]} scale=-1,1
     ''')
Result('decon1000',
       'pow pow1=2 | grey title=Deconvolution ')

# Process all traces
Flow('decon',['filter','viking',convolve],
     '''
     ./${SOURCES[2]} data=${SOURCES[1]} adj=n |
     add ${SOURCES[1]} scale=-1,1
     ''')

# Average trace amplitude
Flow('arms','decon',
     'mul $SOURCE | stack axis=1 | math output="log(input)" ')

# shot/offset indeces: fldr and tracf
Flow('index','tviking','window n1=2 f1=2 | transp')

def plot(title,bias=5):
    return '''
    spray axis=1 n=1 |
    intbin head=${SOURCES[1]} yk=fldr xk=tracf | window |
    grey title="%s" label2="Shot Number" unit2=
    label1="Offset Number" unit1= bias=%d clip=3
    ''' % (title,bias)

# Display in shot/offset coordinates
Result('varms','arms tviking',plot('Log-Amplitude'))

prog = Program('../alaska/surface-consistent.c')
sc = str(prog[0])

Flow('model',['arms','index',sc],
     '${SOURCES[2]} index=${SOURCES[1]} verb=y')

Flow('sc',['arms','index',sc,'model'],
     '''
     conjgrad ${SOURCES[2]} index=${SOURCES[1]}
     mod=${SOURCES[3]} niter=10
     ''')

Result('vshot','sc',
       '''
       window n1=1000 | put o1=1 d1=1 |
       graph title="Shot Term"
       label1="Shot Number" unit1= label2=Amplitude unit2=
       ''')
Result('voffset','sc',
       '''
       window f1=1000 n1=120 | put o1=1 d1=1 |
       graph title="Offset Term"
       label1="Offset Number" unit1= label2=Amplitude unit2=
       ''')

Flow('scarms',['sc','index',sc],
     '${SOURCES[2]} index=${SOURCES[1]} adj=n')
Result('vscarms','scarms tviking',
       plot('Surface-Consistent Log-Amplitude'))

Flow('adiff','arms scarms','add scale=1,-1 ${SOURCES[1]}')
Result('vadiff','adiff tviking',plot('Difference',0))

End()
