Histogram equalization

Figure 1.

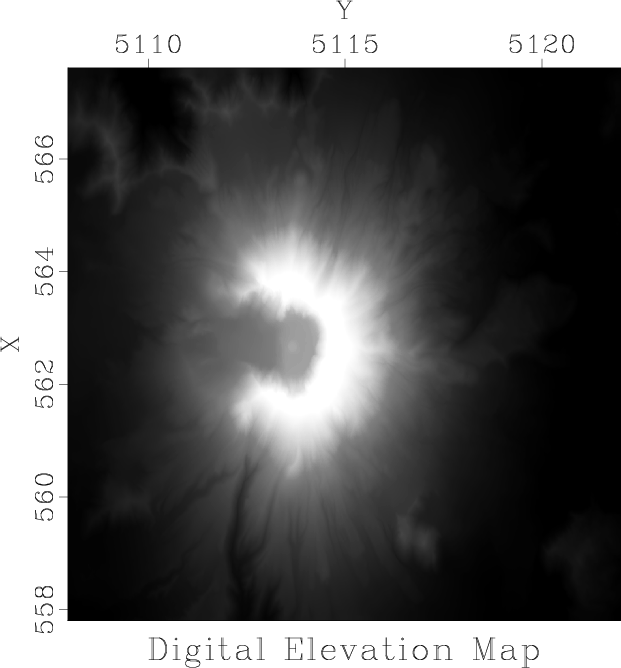

Digital elevation map of Mount St. Helens area.
[pdf] [png] [scons]

Figure 1 shows a digital elevation map of the Mount St. Helens area in Washington. Start by reproducing this figure on your screen.

  1. Change directory to hw1/dem
  2. Run
    scons byte.view
  3. Examine the file byte.rsf which refers to the byte (unsigned character) numbers which get displayed on the screen.
    1. Open byte.rsf with a text editor to check its contents.
    2. Run
      sfin byte.rsf
      to check the data size and format.
    3. Run
      sfattr < byte.rsf
      to check data attributes. What is the maximum and minimum value? What is the mean value? For an explanation of different attributes, run sfattr without input.

Each image has a certain distribution of values (a histogram). The histogram for the elevation map values is shown in Figure 2. When different values in a histogram are not uniformly distributed, the image can have a low contrast. One way of improving the contrast is histogram equalization.

Figure 2.

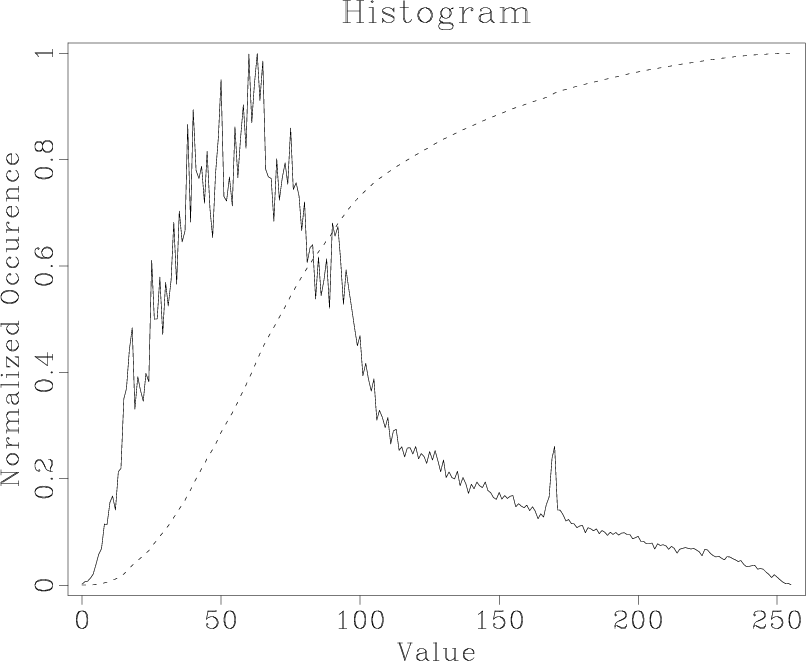

Normalized histogram (solid line) and cumulative histogram (dashed line) of the digital elevation data.
[pdf] [png] [scons]

Let $f(x,y)$ be the original image. The equalized image will be $F(x,y)$. Let $h(f)$ be the histogram (probability distribution) of the original image values. Let $H(F)$ be the histogram of the modified image. The mapping of probabilities suggests

H(F) dF = h(f) df
\end{displaymath} (1)

or, if we want the modified histogram to be uniform,
\frac{d F}{d f} = C h(f)
\end{displaymath} (2)

where C is a constant. Solving equation 2, we obtain the mapping
F(f) = f_0 + C \int\limits_{f_0}^f h(\phi) d\phi\;,
\end{displaymath} (3)

where $f_0$ is the minimum value of $f$.

The algorithm for histogram equalization consists of the following three steps:

  1. Taking an input image $f(x,y)$, compute its histogram $h(f)$.
  2. Compute the cumulative histogram $F(f)$ according to equation (3). Choose an appropriate $C$ so that the range of $F$ is the same as the range of $f$.
  3. Map every pixel $f(x,y)$ to the corresponding $F(x,y)$.

Your task:

  1. Among the Madagascar programs, find a program that implements histogram equalization. Hint: you may find the sfdoc utility useful.
  2. Edit the SConstruct file to add histogram equalization. Create a new figure and compare it with Figure 1.
  3. Check the effect of equalization by recomputing the histogram in Figure 2 with equalized data. Run
    scons hist.view
    to display the figure on your screen.

from rsf.proj import *

# Download data
txt = 'st-helens_after.txt'
Flow('data.asc',txt,'/usr/bin/tail -n +6')

# Convert to RSF format
     echo in=$SOURCE data_format=ascii_float
     label=Elevation unit=m
     n1=979  o1=557.805  d1=0.010030675 label1=X
     n2=1400 o2=5107.965 d2=0.010035740 label2=Y |
     dd form=native |
     clip2 lower=0 | lapfill grad=y niter=200

# Convert to byte form
     dd form=native |
     byte pclip=100 allpos=y bias=2231

# Display
       grey yreverse=n screenratio=1
       title="Digital Elevation Map"

# Histogram
     dd type=float |
     histogram n1=256 o1=0 d1=1 |
     dd type=float
     'graph label1=Value label2=Occurence title=Histogram')

# Cumulative histogram

Result('hist','hist cumu',
       cat axis=2 ${SOURCES[1]} | scale axis=1 |
       graph label1=Value label2="Normalized Occurence"
       title=Histogram dash=0,1
