In total the Marmousi2 model is 3.5 km in depth and 17 km across. The model contains 199 horizons which make the model stratigraphicaly more complex than its predecessor. Additionally the water layer was extended to 450 meters.
As Marmousi2 is an elastic model both shear and primary velocities must be defined across the entire model. Additionally a density model is included. The files vp_marmousi-ii.segy, vs_marmousi-ii.segy, and density_marmousi-ii.segy contain the velocity and density models for Marmousi2. These three files all share the same data spacing and their headers should be formatted similarily. This header format is shown in table 2
n1=2801 | o1=0 | d1=0.001249 | label1=Depth | unit1=km | |
n2=13601 | o2=0 | d2=0.001249 | label2=Position | unit2=km |
The file marmousi2modelSConstruct is a SCons script that fetches the three model files (VP, VS, and Density), appends the header information as necessary and produces plots of the models. This file is reproduced in table 3 and the models themselves are shown in figures 1, 2, and 3.
from rsf.proj import * # Fetch Files from repository modelFiles=['vp_marmousi-ii.segy','vs_marmousi-ii.segy','density_marmousi-ii.segy'] outputFiles=['vp','vs','density'] for file in modelFiles: Fetch(file,"marm2") # Convert Files to RSF counter=0 for file in modelFiles: if file is 'vp_marmousi-ii.segy' or file is 'vs_marmousi-ii.segy': Flow(outputFiles[counter],file, ''' segyread tape=$SOURCE | put d1=.001249 d2=.001249 o1=0 o2=0 label1=Depth label2=Distance unit1=km unit2=km''') if file is 'density_marmousi-ii.segy': Flow(outputFiles[counter],file, ''' segyread tape=$SOURCE | put d1=.001249 d2=.001249 o1=0 o2=0 label1=Depth label2=Distance unit1=km unit2=km''') counter = counter+1 # Plotting Section title=['Compressional Velocity Model','Shear Velocity Model','Density Model'] counter=0 for file in outputFiles: Flow(file+'small',file,'prep4plot inp=$SOURCE out=$TARGET',stdin=0,stdout=-1) if file is 'vp' or file is 'vs': Result(file,file+'small', ''' grey color=I gainpanel=a allpos=y title=%s scalebar=y screenratio=.205 screenht=2 scalebar=y barlabel=Velocity barunit=km/s labelsz=4 wheretitle=t titlesz=6 barreverse=y ''' % title[counter]) if file is 'density': Result(file,file+'small', ''' grey color=I gainpanel=a allpos=y title=%s scalebar=y screenratio=.205 screenht=2 scalebar=y barlabel=Density barunit="g/cm3_" labelsz=4 wheretitle=t titlesz=6 barreverse=y ''' % title[counter]) counter = counter+1 End() |
![]() |
---|
vp

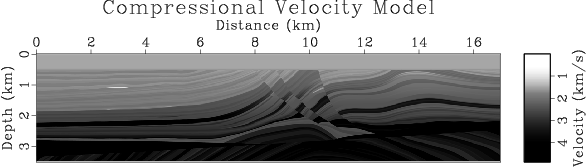

Figure 1. Marmousi2 P-wave velocity model |
![]() ![]() ![]() |
![]() |
---|
vs
Figure 2. Marmousi2 S-wave velocity model |
![]() ![]() ![]() |
![]() |
---|
density
Figure 3. Marmousi2 Density Model |
![]() ![]() ![]() |
![]() |
![]() |
![]() |
