Sigsbee model

Model

strvel
Figure 1. ``Stratigraphic'' velocity model.

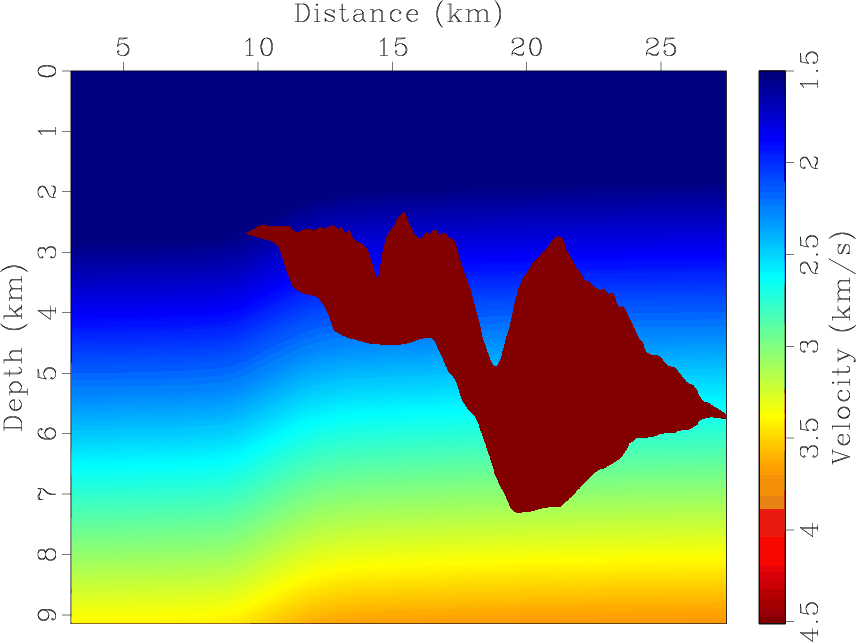

migvel
Figure 2. ``Migration'' velocity model.

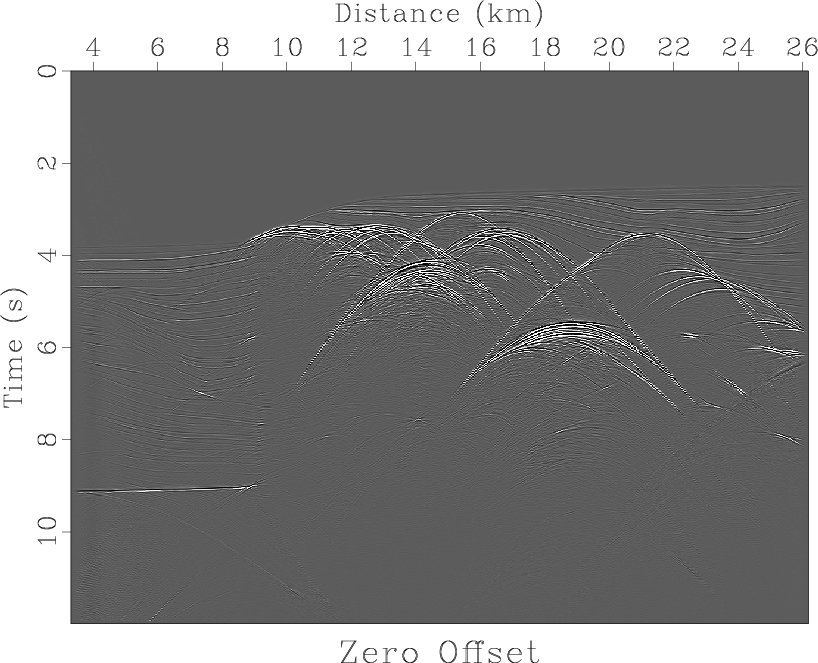

zodata
Figure 3. Zero-offset data from finite-difference modeling.

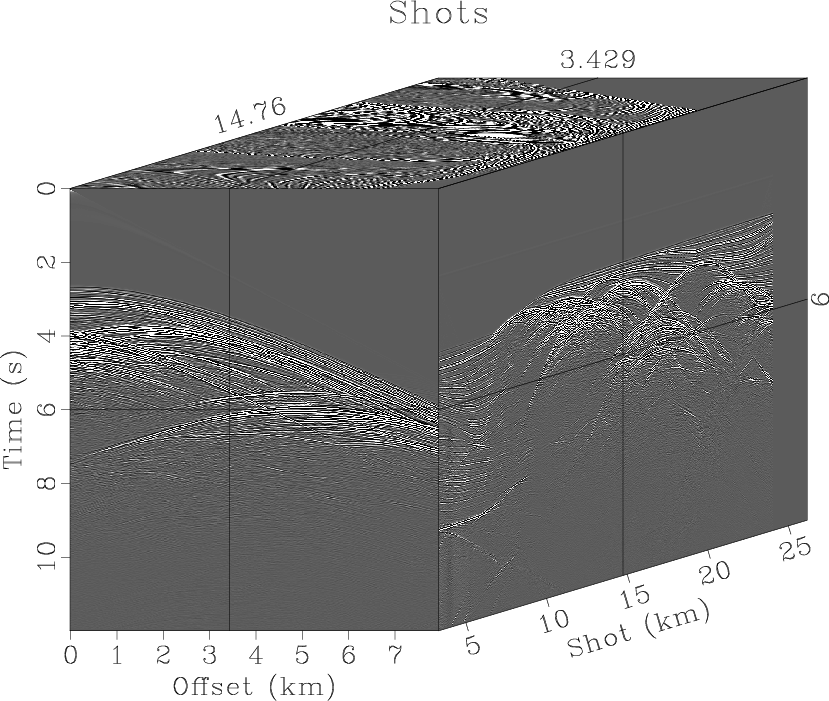

shots
Figure 4. Shot gathers from finite-difference modeling.

refl
Figure 5. Exploding reflector.

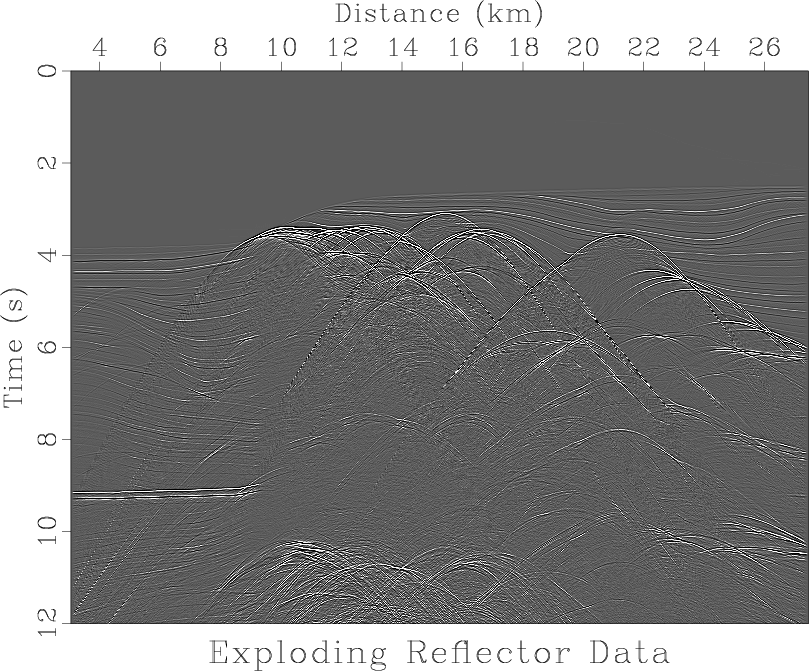

sigexp
Figure 6. High-resolution zero-offset data modeled from exploding-reflector modeling.

Sigsbee model
