sigs-image

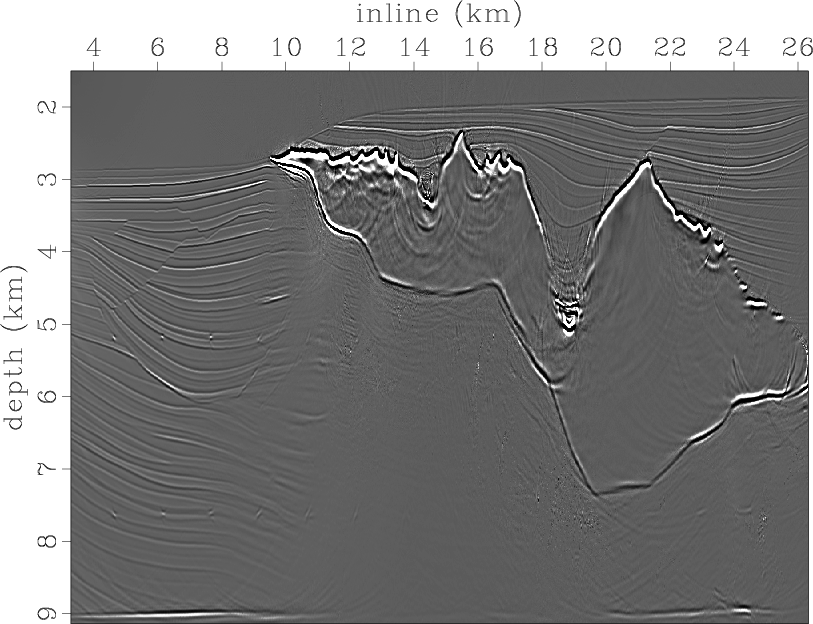

Figure 14. Prestack multi-arrival Kirchhoff migration.
|
|---|
![[pdf]](icons/pdf.png) ![[png]](icons/viewmag.png) ![[scons]](icons/configure.png)
|
|---|
|
|---|
fig6150

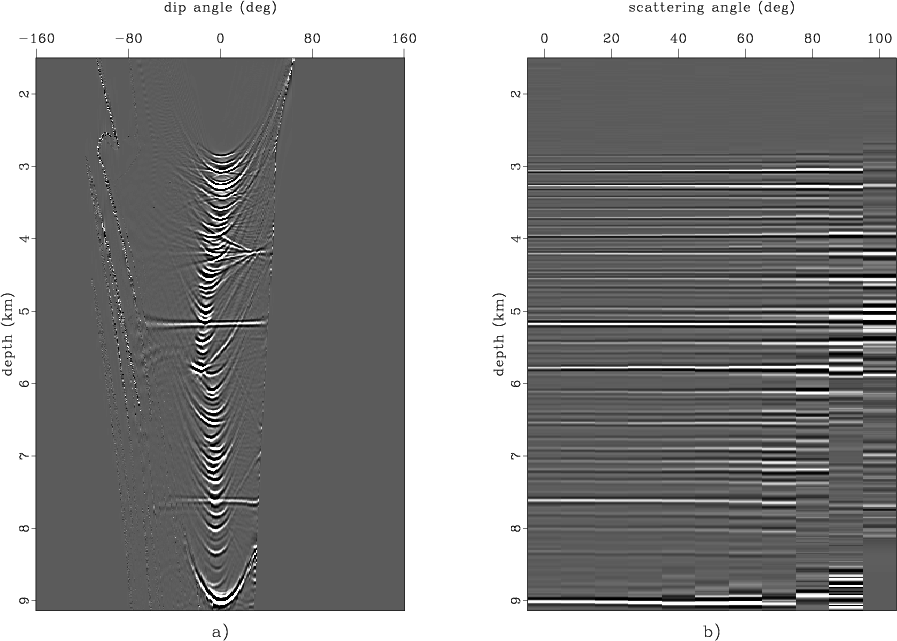

Figure 15. Common-image gather in (a) the dip-angle domain and
(b) the scattering-angle domain from position 6.15 km - sedimentary area.
|
|---|
|
|
|---|
|
|---|
fig23000

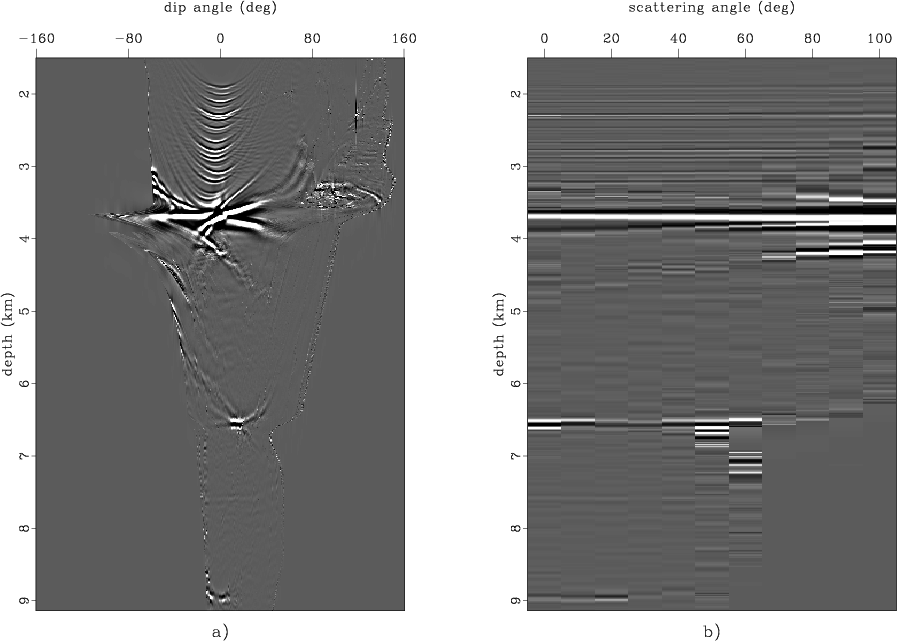

Figure 16. Common-image gather in (a) the dip-angle domain and
(b) the scattering-angle domain from position 23 km - salt area.
|
|---|
|
|
|---|
